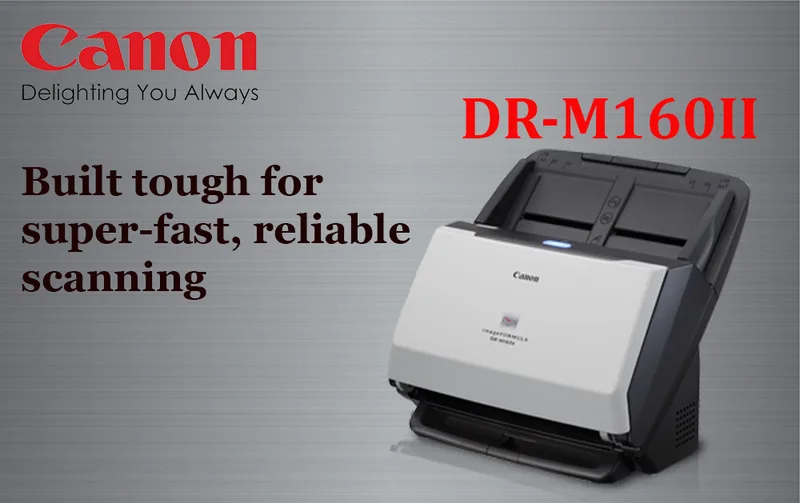

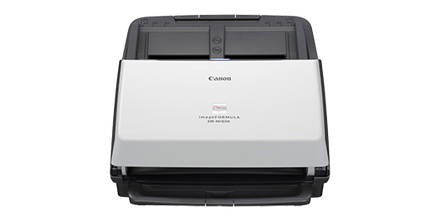

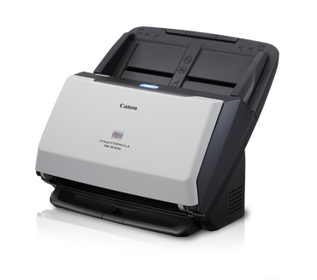

DR-M160II
​
​Built tough for super-fast,reliable scanning
DR-M160II offers superb accuracy with a precise feeding mechanism capable of handling variety of documents.
  •      Compact and heavy duty
Equipped with a sturdy body and durable moving parts, including a paper guide that easily adjusts to fit your document, the DR-M160II is built tough to get the job done as smoothly and effortlessly as possible. The heavy-duty feed tray can hold up to 60 sheets.
The slanted paper path design ensures smooth handling for everything from thick or thin documents to multi-sheet forms, checks, embossed cards, etc.
  •   Fast and realible
Capable of producing high-quality 24-bit images in full colour at 60ppm via simple front panel operations, DR-M160II is everything you need for your intensive document.
In addition, the double feed detection and separation retry functions automatically correct feed errors to maximize efficiency.


  • Superb image processing
Perfect your scans with image processing functions. The background smoothing function can reduce unevenness and smoothes scanned document data you require.
The Automatic Colour Detection differentiates colour documents from your black & white for easy scanning, so it's no longer necessary to separate black & white and colour documents prior to scanning.
Detailed Features
  •  Benefits
  1.
  2. Class-leading colour scanning speeds of up to 120ipm
  3. Robust design to handle up to 7,000 scans/day
  4. Windows, Mac and Linux compatible
  5. Compactly built and highly productive
  6. Supreme paper-handling reliability includes paper separation retry
  • Fast scanning for scanning for paper-intensive environments
 Built for demanding scanning environments, the image FORMULA DR-M160II delivers highly productive scanning at up to 120ipm. It is ideal for OCR processing in both Windows and Mac environments.
​
  • Trouble-free paper handling
 A unique separation retry system allows the scanner to automatically re-feed documents on the rare occasions when a double feed detection occurs, helping to minimise any need for user intervention. The double feed release button allows the user to quickly ignore a double feed detection and continue scanning.


​
  • ​​​Robust design for fast delivery
 The robust design includes an impressive 60-sheet feeder, which accommodates mixed batched documents to help boost productivity. The DR-M160II is designed to provide super-reliable feeding and separation of various media types; from thick to thin sheets, and from embossed cards to three metre-long documents. Built to handle up to 7000 scans/day, the DR-M160II includes heavy-duty feed rollers and a solid paper transport that make it extremely durable and able to take on heavier workloads.
​
  • Intuitive bundled software for ease of use
The imageFORMULA DR-M160II comes with software that is easy to use for seamless scanning and document management. CaptureOnTouch has an intuitive user interface that incorporates a Full Auto Mode function for simplified scanning operation; and it also supports scanning to multiple file formats (PDF, PDF-A, TIFF, JPEG, BMP and PowerPoint) and connectivity to SharePoint. CapturePerfect is ideal for more mission critical batch scanning, as it provides the ultimate in viewing capabilities and send methods – including direct to folder, email and SharePoint. Also included are the industry-leading image processing software Kofax VRS (with AIPE) and eCopy PDF Pro Office, for quickly creating, editing and converting PDF documents.



​
Scanner Features
  • Special features

 Versatile options and software
To scan bound materials easily, connect the DR-M160II to Canon’s optional A3 Flatbed 201 or A4 Flatbed 101 scanner. Additional options include the Barcode Module III and a 2D Barcode Module.
Specifications for DR-M160II
Type : Desktop sheetfed scanner
Scanning document size :
  • Plain paper
  1. Width: 54mm to 216mm
  2. Length: 50.8mm to 356mm
  3. Long Document mode up to 3,000mm
  • Business card
  1. Width: 50.8mm to 55mm
  2. Length: 85mm to 91mm
  • Card  : 54mm x 86mm (ISO standard)
Scanning document thickness :
  • Plain paper :Page separation:  0.04mm to 0.25mm (27 to 209g/m2)
  • Bypass :0.04mm to 0.3mm (27 to 255g/m2)
  • Business card : 380g/m2 (0.15mm or smaller)
  • Card : 0.76mm or less (Up to 1.4mm for embossed cards)
Document feeding method : Automatic
Scanning sensor : Contact image sensor
Light source : LED
Scanning side :Simplex / Duplex
Scanning modes : Black and White, Error Diffusion, 256-level Grayscale, Advanced Text Enhancement, Advanced Text Enhancement II, 24-bit Color
Scanning Resolutions :150 x 150dpi / 200 x 200dpi / 240 x 240dpi / 300 x 300dpi / 400 x 400dpi / 600 x 600dpi
Scanning Speed *1B&W/GrayscaleSimplex:200dpi 60 pages/min. 300dpi 60 pages/min. Duplex:200dpi 120 images/min.
300dpi 120 pages/min. 24-bit colourSimplex:200dpi 60 pages/min. 300dpi 50 pages/min. Duplex:200dpi 120 images/min.
300dpi 100 pages/min.
Interfaces : Hi-Speed USB 2.0
Scanner driver/ Software :
  • Windows:ISIS / TWAIN driver, CaptureOnTouch, CapturePerfect, eCopy PDF Pro Office, Kofax VirtualReScan Basic
  • Mac:TWAIN driver, CaptureOnTouch
Other functions :Folio scanning, double feed detection release, separation retry
Dimensions (W x D x H) :With the feed tray removed and the document eject tray closed 280mm x 172mm x 178mm,With the feed tray attached and the document eject tray open 280mm x 606mm x 366.4mm
Weight :Approximately 3.2kg (without AC adapter)
Power supply :DC24V 1.0A (using AC adapter)
Power Consumption :
  • ​Scanning: 27W or less
  • In the sleep mode: 1.8W or less
  • With power switch OFF: 0.5W or less
Operating environment :
  • Temperature : 10°C to 32.5°C
  • Humidity : 20% to 80% RH
Options / Consumables : Flatbed Scanner Unit 101/201, WU10, Barcode Module, 2D code Module, Exchange Roller Kit (feed roller and retard roller)

Bundled Software
  • Windows:ISIS / TWAIN driver, CaptureOnTouch, CapturePerfect, eCopy PDF Pro Office, Kofax VirtualReScan Basic
  • Mac:TWAIN driver, CaptureOnTouch
