MobileOffice AD480

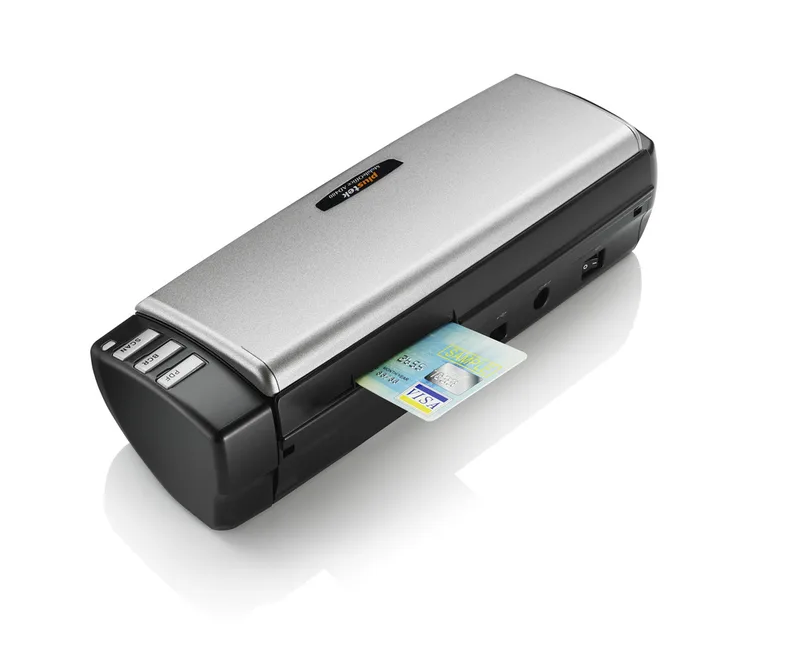

Credit Card Can insert by a special slot, without have to open up the scanner over.
The AD480 scanner is versatile and robust mobile scanner in its class, designed for home and small offices. With double-sided scanning up to 20ipm and a 20-page ADF capacity users can scan efficiently, in the office or at home. It has a strong robust design for handling up to 500 documents a day. It delivers speed, image quality, and great paper handling, along with easy integration and compatibility with document imaging applications.
Specification:
Image Sensor: CIS x 2
Light Source: LED
Optical Resolution: 600 dpi
Hardware Resolution: 600 x 600 dpi
ADF Capacity: 20 Sheets (A4/ Letter, 70 g/㎡ or 18 Lbs)
6 Sheets (Business Card)
Scanning Speed: 20 ppm / 40 ipm (Grayscale, 200 dpi, A4)
20 ppm / 40 ipm (B&W, 200 dpi, A4)
20 ppm / 40 ipm (Color, 200 dpi, A4)
Scanning Area (W x L) ADF:
Maximum: 216 x 914.4 mm (8.5" x 36")
Minimum: 12.7 x 12.7 mm (0.5" x 0.5")
Cardslot:
Maximum: 90.9 x 105 mm (3.58" x 4.13")
Minimum: 12.7 x 12.7 mm (0.5" x 0.5")
Acceptable Paper Sizes (W x L) ADF:
Maximum: 216 x 914.4 mm (8.5" x 36")
Minimum: 50.8 x 50.8 mm (2" x 2")
Cardslot:
Maximum: 90.9 x 105 mm (3.58" x 4.13")
Minimum: 50.8 x 50.8 mm (2" x 2")
Acceptable Paper Weight (Thickness): Paper: 50 g/㎡ to 120 g/㎡
Plastic card: Non-Embossed up to 0.76 mm & Embossed up to 1.24 mm (ISO 7810)
Daily Duty Scan ( Sheets ): 1500
Roller Lifetime (Scans): 100000
Pad Lifetime (Scans) 20000
Action Button: PDF, BCR, Scan
Power Supply: AC adapter: 24 Vdc/ 0.75 A
Interface: USB 2.0
Net Weight: 1.3 Kgs (2.87 Lbs)
Dimensions (W x D x H): 288.5 x 98 x 75 mm (11.36" x 3.8" x 2.96")
Protocol: TWAIN compliant
OS: Window XP / Vista / 7 / 8 / 10
Hardware Requirements :
Pentium IV 2.0 GHz processor (Pentium IV 3.0 GHz processor recommended)
CD-ROM Driver
One available USB Port (USB 2.0 recommended)
1GB RAM or higher recommended
800 MB free HDD space (1 GB or larger recommended)
