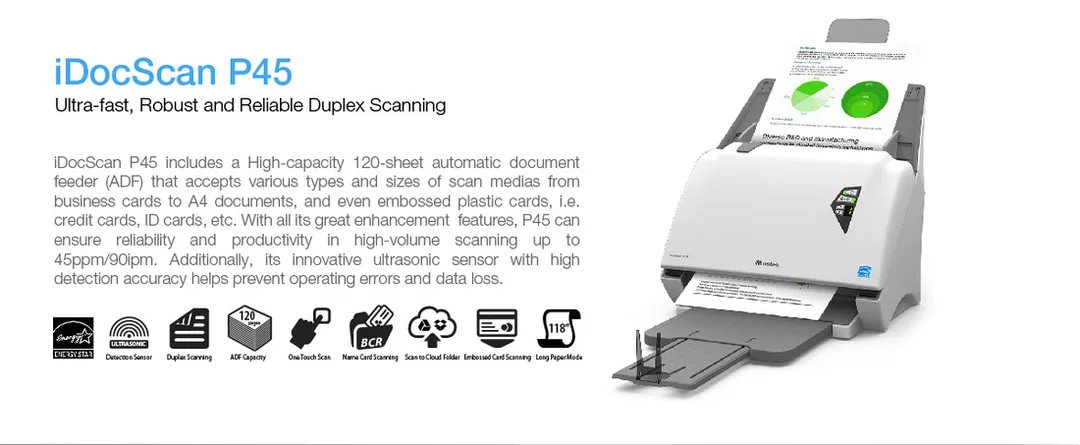

Scanner Type Color Duplex Sheetfed Auto Document Feeder (ADF)
Scan Sensor Contact Image Sensor (CIS) x 2
Light Source LED (RGB)
Scanning Side Duplex and Simplex
Output Color Depth Color: 24 bit, Grayscale: 8 bit, B/W: 1-bit
Scan Speed
35 ppm / 70 ipm (Color, 200 dpi, A4, 70 g/m² )
45 ppm / 90 ipm (Gray, 200 dpi, A4, 70 g/m² )
45 ppm / 90 ipm (B/W, 200 dpi, A4, 70 g/m² )

ADF Capacity 120 Pages (at 70 g/m² )
ADF Width 9.5” (242 mm)
Scan Area Max. 8.5" x 14" (216 x 356 mm)
Min. 2" x 3.35" (50.8 x 85.1 mm)

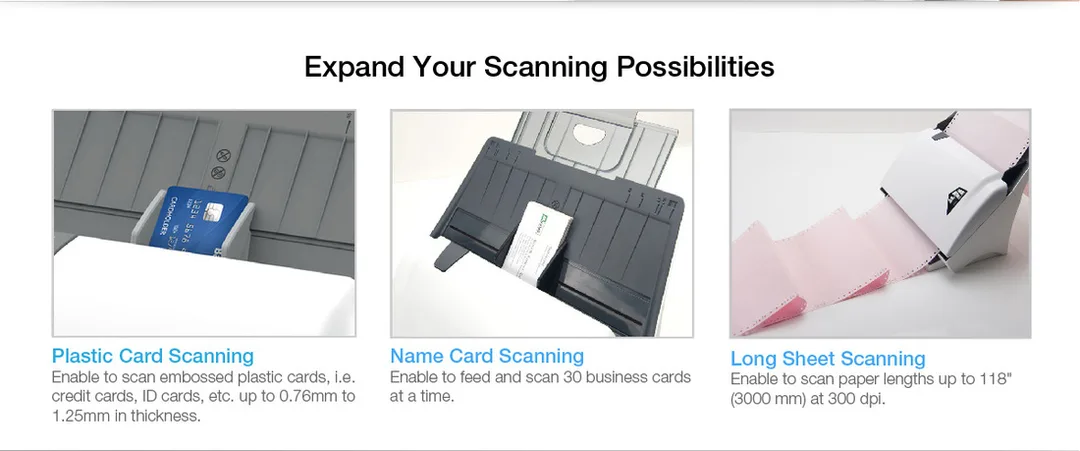

Long document scanning up to 118” (3000mm)
Optical Resolution 600 x 600 dpi
Paper Weight (Thickness) Plain Paper: 28 ~ 312 g/m² (7 to 87 lbs)
Plastic Card: Up to 1.25mm (0.05") or less
Interface USB 2.0
Daily Duty Cycle 9,000 sheets
Protocol TWAIN Compliant (for Windows XP / Vista / 7 / 8 / 8.1)
Dimension 12.4" x 10.7" x 11.7" (315 x 274 x 298 mm)
Weight Approx. 9 lbs (4.1 kgs)
Power Supply 24V/1.5 A (Input : 100V ~ 240V, 50/60Hz)
Operation Temperature 10 °C - 35 °C (50 °F - 95 °F)
