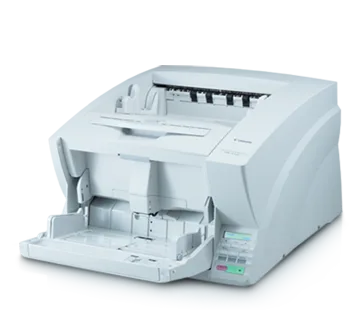

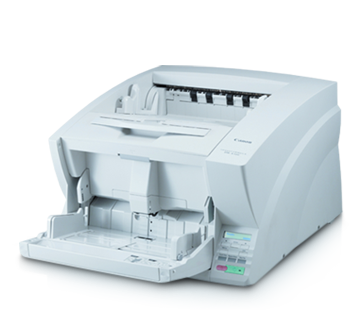

DR X10C

Superb Canon Image Quality and Speed
The Canon DR- X10C delivers unrivalled image quality and scanning speed, plus diverse output formats such as searchable PDF in resolutions up to 600 dpi.  Unique to the DR series is its selectable background-the colour can be switched between white and black to suit particular document types and applications.
  • Rapid, high quality scanning
​Images can be continuously captured at a rate of 100 pages per minute or 200 images per minute in color , gray scale, or black-and-white (A4/LTR, 200 dpi, portrait).  Onboard JPEG compression is available for larger files for reduced transfer time to your PC.
  • 3-Lines CMOS image sensor technology
The scanner employs dual 3-line CMOS contact image sensors for unrivalled document scanning speed, image sharpness, and tonal accuracy.   resulting images are true to the original document- free of unwanted color staining that affects conventional scanners.
  • 3-step dust prevention method for clean, and clear images​ ​
  • Dedicated, onboard image processing chip
The scanner maintains it high scanning speed even with multiple image processing functions selected thanks to hardware image processing.  Functions are processed by the onboard chip rather than the connected PC for minimal speed deterioration.
  • Automatic scanner calibration
Shade Correction is an automatic scanner calibration process that ensures uniform, consistent image quality and tonality form page to page.  Prior to each scan job, the image sensor shifts within the scanner to calibrate itself against a special white shading surface

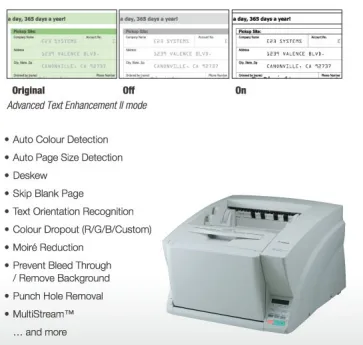

  • Advanced image processing

Superior Paper Handling and Reliability​

  • Smooth feeding of a wide variety of documents
​The DR-X10C delivers smooth, jam-free feeding of a wide variety of documents including mixed batches and non-standard documents-from business card size up to A3 (11x17 in).  Active unique control lets you adjust roller torque to accommodate otherwise difficult-to-feed paper types such as especially thin or thick documents, in five levels of adjustment.

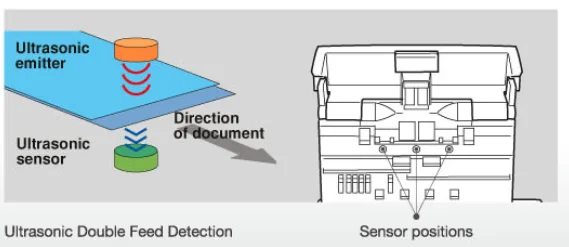

  • 3 ultrasonic double feed sensors, with ''multi-zoning" capability
  • Verify scan & count only modes
Verify scan mode allows operators to confirm that ll the pages in  a batch are scanned by comparing a document hard count with the number of scanned pages.  Count only mode does't scan the documents and performs just a hard count of pages.
All-new double feed retry mechanism
In the rare event that a double feed occurs, the Double Feed Retry function returns the document pages to the feeder inlet an retries scanning up to there times before pausing document transport, dramatically reducing the need for operator intervention.

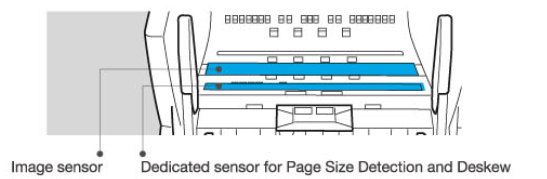

Dedicated sensor for ducument size and angle detection
  • .Staple detection sensors
Canon's Staple Detection feature automatically halts the scanning process when an unremoved staple is detected.  Left undetected, staples could cause errors that compromise the document, cause jams, or damage the device.
  • Rapid recovery system
If scanning is interrupted die to a misfeed, the scanner's Rapid Recovery System ensures that only completed image data is transferred to the application software-the ''bad'' data is not sent -so  the operator can simply correct the error and seamlessly resume scanning.

    Scanner Features

    • Auto power on/off synchronising
    The DR-X10C can be synchronised to automatically turn on and off according to the status of the connected PC when connected via USB.  Manual power on and off, of course, is available.  What's more. the scanner's cover/feed tray automatically opens at power on.
    • Storage Box
    The output tray of the scanner features two built-in pockets in which consumables (such as an ink cartridge for the optional imprinter) and the supplied cleaning cloth can be stored for easy success.

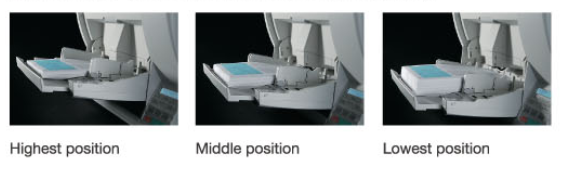

    • High volume feeder
    The motorized paper feed tray can be set to one of three height positions according to the volume of a typical batch, which helps minimize the wait time before scanning begins.  Each position accommodates up to approximately 100,300, and 500 sheets, respectively.
    • Intuitive control panel
    Start and stop scanning, select preregistered scan jobs, check displayed messages, and select scanner settings using the control panel on the machine.
    Job key
    Enables the operator to select and execute up to 99 preregistered scan jobs directly from the DR-X10C control panel without having to use a scanning application.

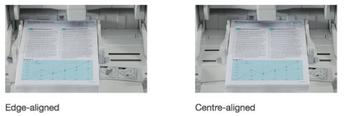

    • Flexible paper guides
    The paper feed guides can be moved independently and locked into place to accommodate diverse scanning positions. The output guides, too, can be set freely to match.
    • Tough, durable construction
    The robust DR-X10C features a solid body and durable roller system to handle the demands of production-level scanning. Its daily duty cycle is rated at 60,000 sheets per day.
    • Compact, ergonomic design
    The DR-C10C is the most compact and lightweight scanner in its class and features an ergonomic, streamlined design that adds to operator handling comfort.
    • Eject brake
    Scanned documents are neatly stacked in the output tray with the help of an improved braking mechanism that controls the speed of document output.  This reduces the need for the operator to physically gather and align the pages.
    Specifications for DR X10C
    Type: Desktop sheetfed scanner
    Document Feeding: Automatic or manual sheet feeding
    Document size: Width:50.8 - 305mm (2 - 12.01in.)
    Length: 70 - 432mm (2.76 - 17.01in.)
    Document thickness and weight: Automatic feeding:
    0.06 - 0.15mm, 52 - 128g/m2 (14 - 32lb. bond)
    Manual feeding:0.05 - 0.30mm, 42 - 255g/m2 (11 - 64lb. bond)
    Feeding capacity: Up to 500 sheets of good quality paper (48mm or less including page curl)
    Scanning element: 3-line CMOS CIS
    Light Source: LED (red, green, and blue)
    Scanning Side: Simplex / Duplex
    Scanning Modes: Black and White, Error Diffusion, Advanced Text Enhancement, Advanced Text Enhancement II
    256-level Grayscale
    24-bit Colour
    Scanning Resolutions: 100 x 100dpi, 150 x 150dpi, 200 x 200dpi, 240 x 240dpi, 300 x 300dpi,
    400 x 400dpi, 600 x 600dpi
    Scanning speed*1 (A4 / LTR, Portrait, 200dpi)
    PortraitBlack and White:100ppm (Simplex) / 200ipm (Duplex)
    Grayscale:100ppm (Simplex) / 200ipm (Duplex)
    Colour:100ppm (Simplex) / 200ipm (Duplex)
    LandscapeBlack and White:130ppm (Simplex) / 260ipm (Duplex)
    Grayscale:130ppm (Simplex) / 260ipm (Duplex)
    Colour:130ppm (Simplex) / 260ipm (Duplex)
    Useful functions: Job Function, Ultrasonic Double Feed Detection, Staple Detection, Selectable Background Colour,
    Dust Countermeasures, Auto USB Power Switching, Auto Colour Detection, Moiré Reduction,
    Prevent Bleed Through / Remove Background, User Registration, Skip Blank Page, Auto Page Size Detection,
    Deskew, Batch Separation, Text Orientation Recognition, Black Border Removal, Punch Hole Removal, Folio,
    Long Document Mode, Colour Dropout / Enhancement (R/G/B/Custom), MultiStream™
    Interfaces: Dual Interface (SCSI-3 & High-Speed USB2.0)
    Software: ISIS / TWAIN Driver, Job Registration Tool, CapturePerfect 3.0
    Power requirements: AC 100V (50 / 60Hz), AC 120V (60Hz), AC 220 - 240V (50 / 60Hz)
    Power Consumption: Scanning:125W
    Sleep mode:4.2W (AC 220 - 240V: 4.5W)
    Power Turned Off:0W
    Operating environment:10 - 32.5°C (50 - 90.5°F)
    Humidity:20 - 80% RH
    Dimensions (W x D x H)528 x 563 x 375mm (20.79 x 22.17 x 14.77in.), with trays closed
    Weight: Approx. 39kg (86lb.)
    Optionals: Pre-Imprinter Unit, Post-Imprinter Unit, Patch Code Decoder,
    Barcode Module III
    Consumables: Exchange Roller Kit (Feed roller, Retard roller, Pick roller),
    Cleaning Sheets (30), Ink Cartridges for Imprinter
