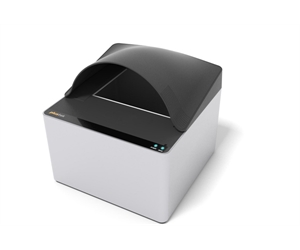

SecureScan X150
The Plustek SecureScan X150 is a compact and stylish MRTDs (Machine Readable Travel Documents) reader, it support TD1, TD2 and MRP (Passport) sizes scanning within second.
Main Features and Functionality:
Main Features and Functionality:
- Auto scanning when document detected
- Auto recognize multiple document sizes for ID card or passport
- Up to true 500dpi high resolution image output in 24-bit Color
- 3 different wavelength illuminations: Visible, IR (Infra-Red) and UV (Ultraviolet)
- For MRZ recognition, MRTDs Reader SDK included in the package
- USB 2.0 Hub (2 ports) is integrated for connecting external devices (Web-Cam for facial recognition, finger-print scanner or Keyboard…etc)
- Document images can be saved as BMP and JPEG file formats
- Recognition results can be output in .txt, .xml, .csv and QR code multiple formats
- Support full range of Windows OS (XP / Vista / 7 / 8)
SecureScan X150 Specifications
Image Sensor: Area CMOS
Optical Resolution: 5M Pixel
Output Resolutions: 2M / 5M / 300dpi / 400dpi / 500dpi / 600dpi
Scan Area: Max. 127 x 94 mm
Connection Interface: USB 2.0
Power Source: Wall Power (24V / 0.75A)
Extra Connection Interface: USB Hub (USB 2.0 port x 2)
Cable Length: 1.5M
Weight: Approx. 1.7 Kgs
Dimensions (W x D x H): 200 x 200 x 119 mm (Without Cover)
200 x 200 x 190 mm (With Cover)
Indicators: Power / Ready
Buzzer: Yes
Switch: Power
Daily Duty: 5000 pages
Support OS: Windows XP / Vista / 7 / 8
