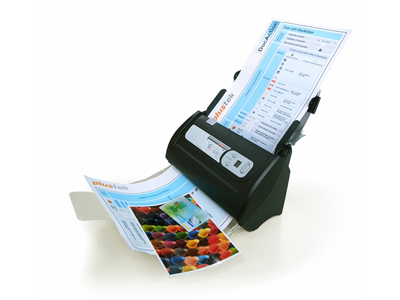

Portable ADF Duplex Scanner SmartOffice PS286 Plus
The Plustek SmartOffice PS286 Plus (Mac-compatible) workgroup class document scanner is designed with the image quality, paper handling and reliability required by the most demanding business users but at a price point attractive to home and SOHO users.
SmartOffice PS286 Plus Features
Reliable Paper Handling
A redesigned 50 page Automatic Document Feeder with a 1500 page per day duty enable the SmartOffice PS286 Plus to be used in any application requiring frequent document and rigid card scanning.
A redesigned 50 page Automatic Document Feeder with a 1500 page per day duty enable the SmartOffice PS286 Plus to be used in any application requiring frequent document and rigid card scanning.
Versatile Paper Handling Ability
The SmartOffice PS286 Plus is designed to scan business documents up to 14” long and rigid cards, such as ID cards and drivers licenses, up to 1.2mm thick, without operator adjustments. Mixed batches of documents can be scanned without sorting thanks to the class leading paper handling and image processing.
The SmartOffice PS286 Plus is designed to scan business documents up to 14” long and rigid cards, such as ID cards and drivers licenses, up to 1.2mm thick, without operator adjustments. Mixed batches of documents can be scanned without sorting thanks to the class leading paper handling and image processing.
Easy to Use
Single Touch buttons automate up to 9 different scanning jobs including: scan to searchable PDF, save to folder on your network or your computer, scan to email, scan to an application, and scan to printer.
Single Touch buttons automate up to 9 different scanning jobs including: scan to searchable PDF, save to folder on your network or your computer, scan to email, scan to an application, and scan to printer.
SmartOffice PS286 Plus Video
SmartOffice PS286 Plus Specifications
Image Sensor: CIS x 2
Light Source: LED
Optical Resolution: 600 dpi
Hardware Resolution: 600 x 600 dpi
ADF Capacity:
1. 50 sheets (A4/ Letter, 70 g/㎡ or 18 Lbs), Max. thickness under 5mm (0.2").
2. 20 sheets (Business Cards).
3. Plastic Card, Max. thickness under 1.2 mm.
Note: Maximum ADF capacity varies, depending upon paper weight.
Scanning Speed:
( ADF ) 25 ppm/ 50 ipm (Grayscale mode, 200 dpi, A4 Portrait)
25 ppm/ 50 ipm (B&W mode, 200 dpi, A4 Portrait)
8 ppm/ 8 ipm (Color mode, 200 dpi, A4 Portrait)
6 ppm/ 6 ipm (Color mode, 300 dpi, A4 Portrait)
Note: Results may vary depending upon your scanning application, computer processor and system memory.
Scanning Area:
(W x L) Max. 216 x 2500 mm (8.5” x 98.42”)
Min. 13.2 x 13.2 mm (0.52” x 0.52”)
Acceptable Paper Sizes:
(W x L) Max. 220 x 2500 mm (8.66” x 98.42”)
Min. 50.8 x 50.8 mm (2” x 2”)
Acceptable Paper Weight: (Thickness) 50 to 105 g/㎡ (14 to 28 Lbs)
Daily Duty Scan ( Sheets ): 1,500
Roller Lifetime (Scans) 100,000
Pad Lifetime (Scans) 20,000
Action Button 3 Buttons: Up, Down, Scan.
9 Function Keys. All Customizable.
Power Supply: 24 Vdc/ 0.75 A
Interface: USB 2.0
Net Weight: 1.66 Kgs (3.66 Lbs)
Dimensions (W x D x H): 263 x 128 x 148 mm (10.36" x 5.02" x 5.83")
Protocol: TWAIN Compliant
OS: Windows XP / Vista / 7 / 8
Intel-based Mac with OS X (v10.8 - v10.10)
LINUX SANE for Systems Integrator. Please contact local sales.
Hardware Requirements:
Pentium IV 2.0 GHz processor (Pentium IV 3.0 GHz processor recommended)
CD-ROM Driver
One available USB Port (USB 2.0 recommended)
1GB RAM or higher recommended
800 MB free HDD space (1 GB or larger recommended)
Light Source: LED
Optical Resolution: 600 dpi
Hardware Resolution: 600 x 600 dpi
ADF Capacity:
1. 50 sheets (A4/ Letter, 70 g/㎡ or 18 Lbs), Max. thickness under 5mm (0.2").
2. 20 sheets (Business Cards).
3. Plastic Card, Max. thickness under 1.2 mm.
Note: Maximum ADF capacity varies, depending upon paper weight.
Scanning Speed:
( ADF ) 25 ppm/ 50 ipm (Grayscale mode, 200 dpi, A4 Portrait)
25 ppm/ 50 ipm (B&W mode, 200 dpi, A4 Portrait)
8 ppm/ 8 ipm (Color mode, 200 dpi, A4 Portrait)
6 ppm/ 6 ipm (Color mode, 300 dpi, A4 Portrait)
Note: Results may vary depending upon your scanning application, computer processor and system memory.
Scanning Area:
(W x L) Max. 216 x 2500 mm (8.5” x 98.42”)
Min. 13.2 x 13.2 mm (0.52” x 0.52”)
Acceptable Paper Sizes:
(W x L) Max. 220 x 2500 mm (8.66” x 98.42”)
Min. 50.8 x 50.8 mm (2” x 2”)
Acceptable Paper Weight: (Thickness) 50 to 105 g/㎡ (14 to 28 Lbs)
Daily Duty Scan ( Sheets ): 1,500
Roller Lifetime (Scans) 100,000
Pad Lifetime (Scans) 20,000
Action Button 3 Buttons: Up, Down, Scan.
9 Function Keys. All Customizable.
Power Supply: 24 Vdc/ 0.75 A
Interface: USB 2.0
Net Weight: 1.66 Kgs (3.66 Lbs)
Dimensions (W x D x H): 263 x 128 x 148 mm (10.36" x 5.02" x 5.83")
Protocol: TWAIN Compliant
OS: Windows XP / Vista / 7 / 8
Intel-based Mac with OS X (v10.8 - v10.10)
LINUX SANE for Systems Integrator. Please contact local sales.
Hardware Requirements:
Pentium IV 2.0 GHz processor (Pentium IV 3.0 GHz processor recommended)
CD-ROM Driver
One available USB Port (USB 2.0 recommended)
1GB RAM or higher recommended
800 MB free HDD space (1 GB or larger recommended)
