A1 A0 Photostat Scanner Printer Machine

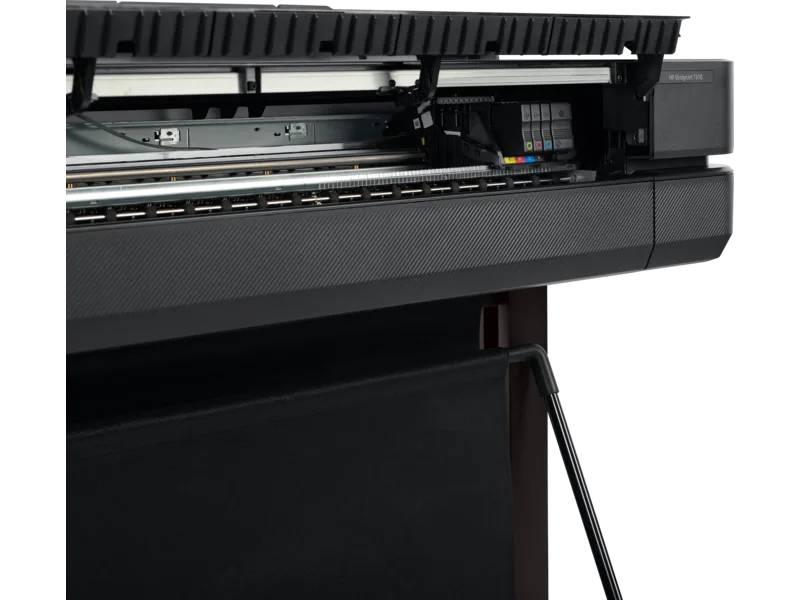

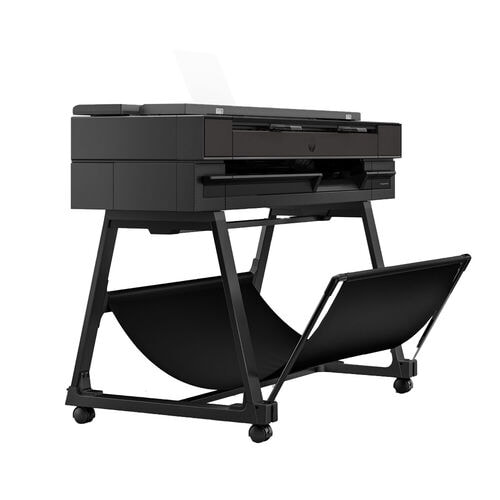

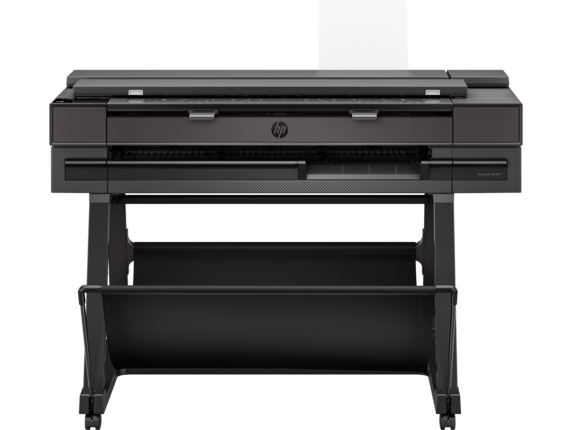

HP DesignJet T850 36 inch MFP Printer
- 50 A3/B input tray to avoid manually changing from roll to sheet
- One-click copy and scan shortcuts dorm intuitive front panel.
- Made with atleast 35% recycled plastics.
- 130/300-ml Original HP Flex Tech Inks for high image quality
- Front-loading scanner on multi-function plotter
- Move projects forward with 45m (150ft) roll
- Auto schedule turns printer on/off to reduce energy use
Print speed: 90 A1/D prints
Model size: 914 mm
A3/B input tray capacity: 50 sheets
Sheet organizer: Available as accessory
Sheet organizer + Stacker: Available as accessory
Model size: 914 mm
A3/B input tray capacity: 50 sheets
Sheet organizer: Available as accessory
Sheet organizer + Stacker: Available as accessory
- Features
- Technical Specification
THE EASIEST
Multi-size printing in one click
- Do it all—also print A3 jobs using the integrated input tray, without manually changing from roll to sheets.
- Achieve high-quality CAD and renders across print sizes with HP Flex Tech Inks. Avoid distractions with fewer ink interventions thanks to 130/300-ml cartridges.
- Simplify scan and copy workflows with personalized one-click shortcuts from the front panel.
CONNECTED
Secure and seamless collaboration
- Save time with HP Click—print in fewer steps and avoid reprinting with print preview.
- Protect your printer and data from cyberthreats without any effort thanks to HP Wolf Pro Security.
- Stay on task with HP app —manage your device and print from virtually anywhere using your mobile or tablet.
- Share drawings and collaborate with colleagues wherever they are with the easy-to-use frontloading scanner.
GO BEYOND
Meet office and environmental needs
- Advance environmental goals—printer is made with at least 35% recycled plastics and recyclable supplies .
- Invest in a robust and compact plotter that’s designed to last.
- Reduce energy and ink waste—auto schedule printer on/off usage and enjoy efficient ink maintenance routines.
|
PRINT |
|
|
Print speed |
25 sec/page on A1, 90 A1 prints per hour |
|
Print resolution |
Up to 2400 x 1200 optimized dpi |
|
Technology |
HP Thermal Inkjet |
|
Margins |
Roll: 5 x 5 x 5 x 5 mm Sheet: 5 x 5 x 5 x 5 mm |
|
Ink types |
Dye-based (C, M, Y); pigment-based (K) |
|
Ink drop |
6 pl (C, M, Y); 12.6 pl (mK) |
|
Print heads |
1 (cyan, magenta, yellow, black) |
|
Printhead nozzles |
1376 per color; 5504 in total |
|
Line accuracy |
±0.1% |
|
Minimum line width |
0.02 mm (via raster driver) |
|
Maximum optical density (black) |
15 L min/1.7 D |
|
MULTIFUNCTION CAPABILITIES |
|
|
Scan speed |
Up to 3.81 cm/sec (color, 200 dpi), up to 11.43 cm/sec (grayscale, 200 dpi) |
|
Scan resolution |
Up to 600 dpi |
|
Technology |
Sheetfed, CIS (Contact Image Sensor), media jam detection sensor, front feed scanning method |
|
Scan format |
JPEG, PDF, TIFF |
|
Scan destinations |
Scan to email, network, and USB. Scan to cloud, computer, and mobile through HP app |
|
Maximum scan length |
7 m |
|
Thickness |
Up to 0.8 mm |
|
MEDIA |
|
|
Handling |
Sheet feed, roll feed, input tray (50 sheet capacity), media bin, automatic horizontal cutter |
|
Roll size |
369 to 914 mm |
|
Maximum roll diameter |
100 mm |
|
Sheet size |
Input tray: 210 x 279 to 305 x 457 mm Manual feed: 210 x 279 to 914 x 1676 mm |
|
Standard sheets |
Input tray: A4, A3 Manual feed: A4, A3, A2, A1, A0 |
|
Grammage |
60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (input tray) |
|
Thickness |
Up to 0.3 mm |
|
Applications |
Line drawings; Renderings; Presentations; Maps; Posters |
|
Memory |
2 GB |
|
Hard disk |
None |
|
CONNECTIVITY |
|
|
Interfaces |
Gigabit Ethernet (1000Base-T), Wi-Fi 802.11b/g/n |
|
Native print languages |
TIFF, JPEG, URF, PDF, HP-GL/2, HP-RTL, CALS G4 |
|
Printing paths |
Wi-Fi Direct, remote printing, Apple AirPrint and HP app for Android and iOS devices, Windows and macOS printer drivers, printing support for Chrome OS, print from USB pen drive |
|
Drivers |
Raster driver for macOS and Windows, HP-GL/2 driver for Windows |
|
Security features |
HP Secure Boot, whitelisting, Security event logging, Disable network ports and protocols, SNMPv3, 802.1x compatibility, TLS/SSL, NTLM v2, HP Web JetAdmin, HP Security Manager, SIEM Integration |
|
DIMENSIONS (W x D x H) |
|
|
Printer |
1407 x 701 x 967 mm |
|
Shipping |
1575 x 570 x 650 mm |
|
WEIGHT |
|
|
Printer |
60 kg |
|
Shipping |
83.5 kg |
|
What's in the box |
HP DesignJet T850 MFP, printhead, introductory ink cartridges, printer stand, spindle, guide, warranty flyer, power cord |
|
HP Software and solutions |
HP Click for Windows and macOS, HP app for Windows, macOS, Android, and iOS |
|
Remote print enabled |
Yes |
|
One-click multi-size printing |
Yes |
|
ENVIRONMENTAL RANGES |
|
|
Recycled plastic in printer |
5 to 40ºC |
|
Operating temperature |
5 to 40°C |
|
Operating humidity |
20 to 80% RH |
|
Operating altitude |
Up to 3000 m |
|
Storage temperature |
-25 to 55°C |
|
ACOUSTICS |
|
|
Sound pressure |
42 dB(A) (operating), <16 dB(A) (idle) |
|
Sound power |
5.8 B(A) (operating), <3.4 B(A) (idle |
|
POWER |
|
|
Consumption |
35 W (printing), <11 W (ready), <3.5 W (sleep), <0.1 W (standby). Auto-scheduled printer on/off usage |
|
Requirements |
Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1.2 A max |
