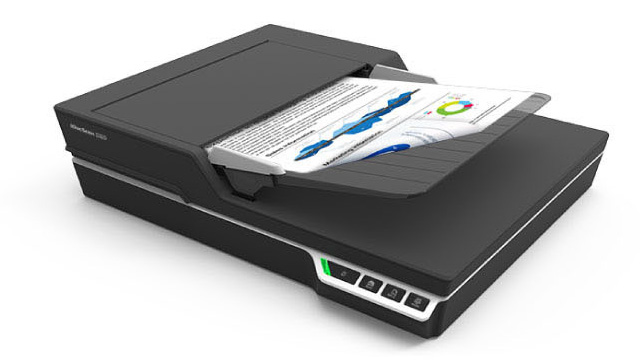

iDocScan D20
Fast, Robust and Reliable Duplex Scanning

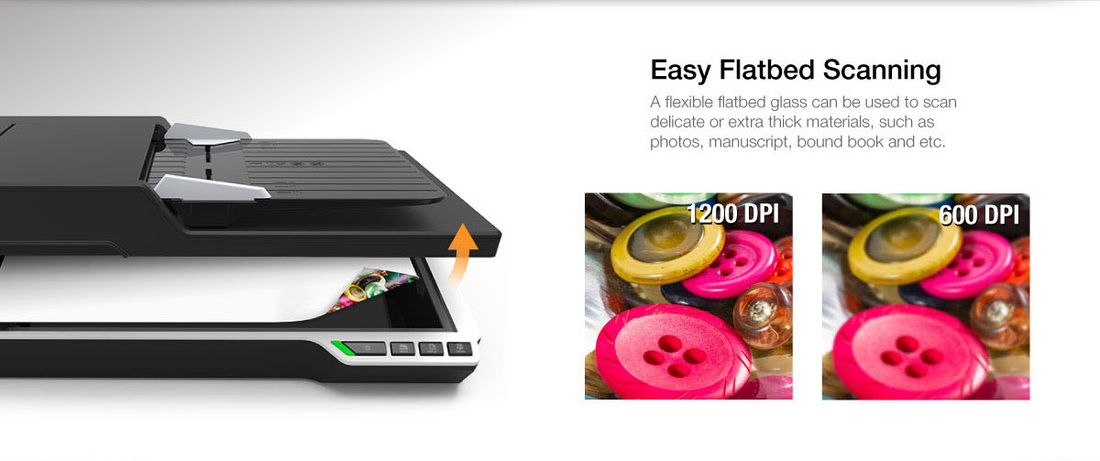

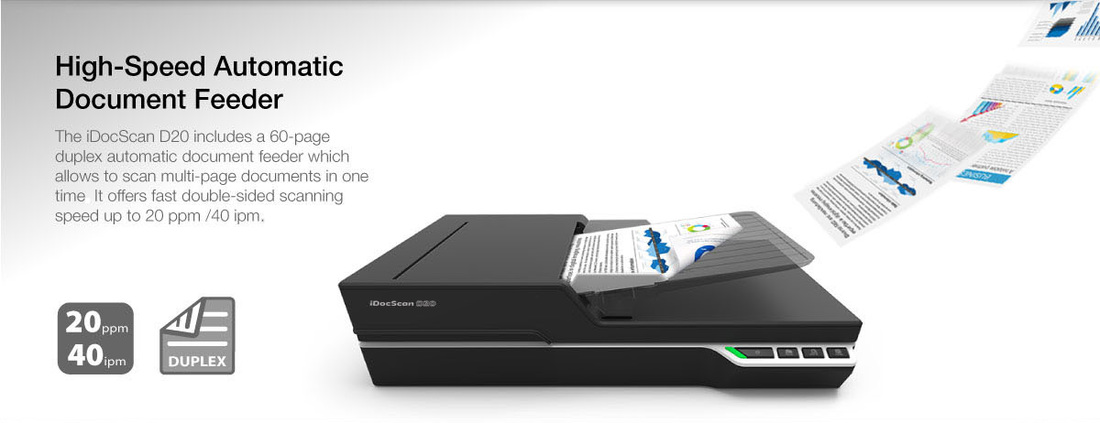

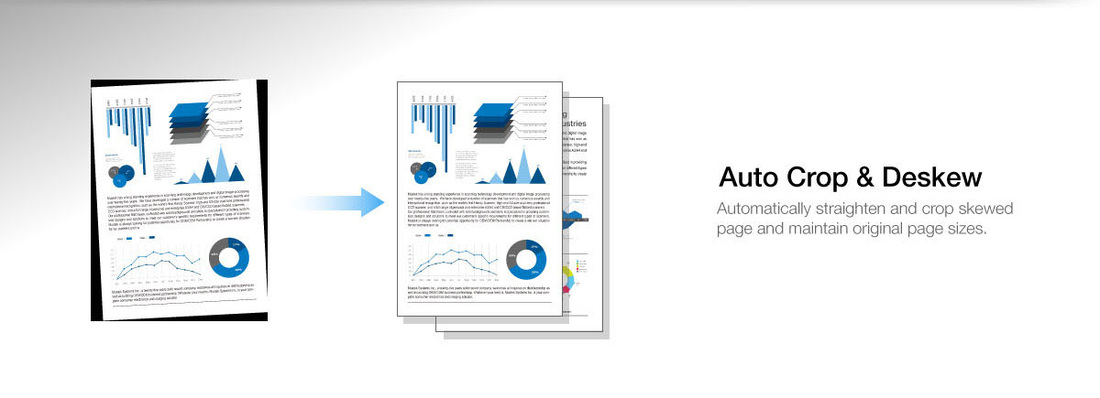

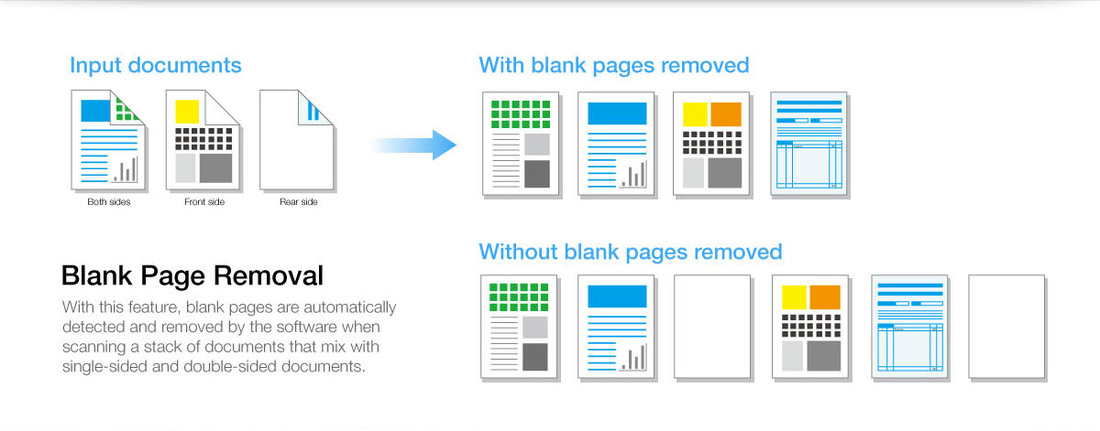

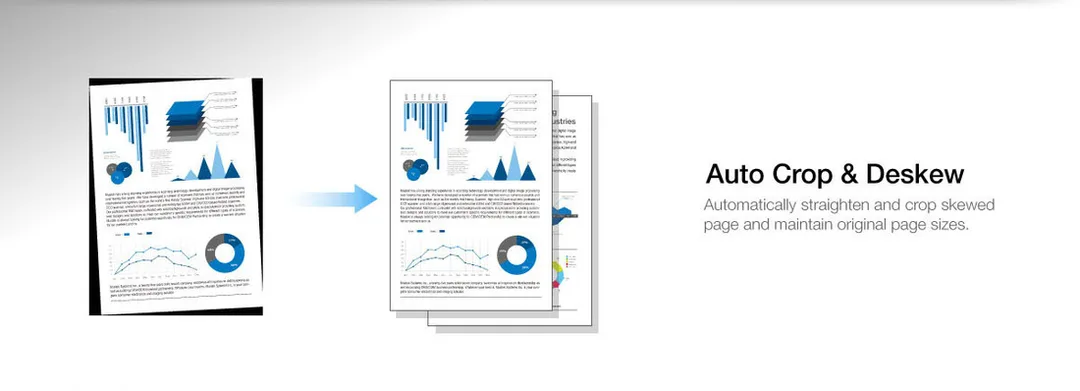

D20 includes a robust 60-page automatic document feeder and the enhancement features like blank page removal and image deskew, which ensure reliability and productivity in mid-volume duplex scanning up to 20ppm/40ipm. Additional flatbed can scan delicate or bound materials up to 1200 dpi optical resolution.
D20 includes a robust 60-page automatic document feeder and the enhancement features like blank page removal and image deskew, which ensure reliability and productivity in mid-volume duplex scanning up to 20ppm/40ipm. Additional flatbed can scan delicate or bound materials up to 1200 dpi optical resolution.
iDocScan D20 Video
iDocScan D20 Features
iDocScan D20 Specification
ADF (Automatic Document Feeder)
Scan Speed 20ppm/40ipm (color, 200 dpi, A4, 70 g/m2 )
20ppm/40ipm (gray, 200 dpi, A4, 70 g/m2 )
20ppm/40ipm (B&W, 200 dpi, A4, 70 g/m2 )
*Scan speed depends on paper weight, software, computer processor and memory.
Capacity 60 pages at 80 g/m2 (21 lb)
*Maximum capacity varies, depending upon paper weight.
Scanning Side Duplex (double sided) and Simplex (single sided)

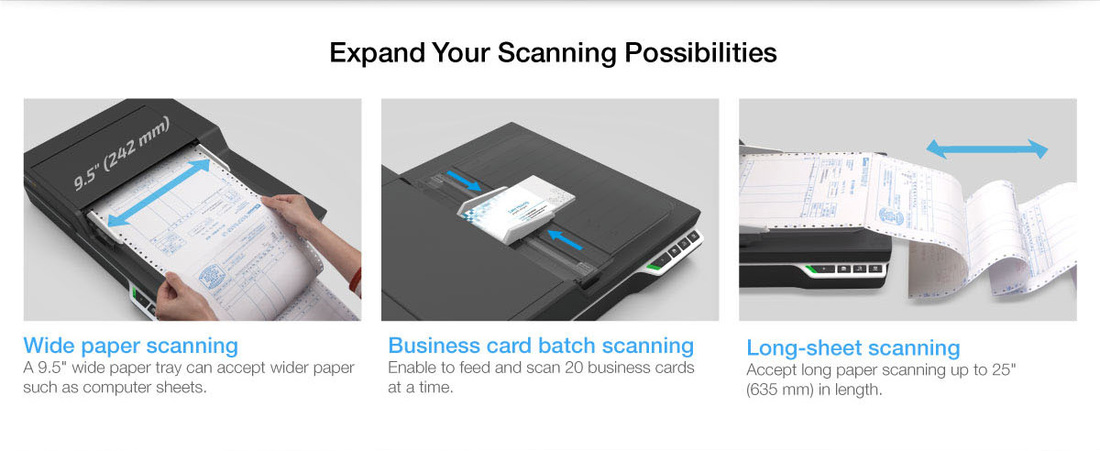

Input Tray Width 9.5" (242 mm)
Scan Area Max. W216mm x L356mm (W8.5” x L14”)
Min. W50mm x 90mm (W2” x L3.5”)
Scan Size Auto
A4 (W210mm x L297mm / W8.3” x L11.7”)
A5 (W149mm x L210mm / W5.9” x L8.3”)
B5 (W176mm x L250mm / W6.9”xL9.8”)
Letter (W216mm x L279mm / 8.5” x 11”)
Name Card (W55mm / W2.2”)
Long Sheet (W216mm x L635 mm / W8.5” x L25”)

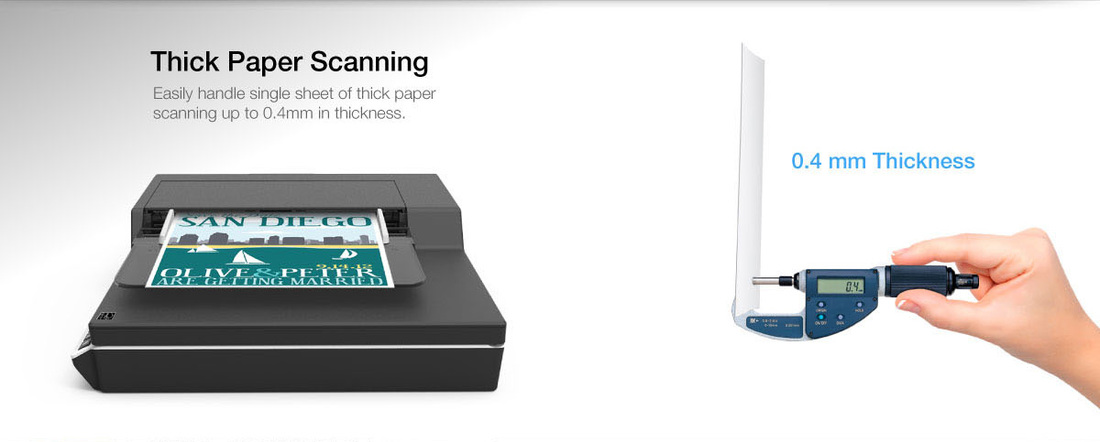

Paper Thickness & Weight 30~130g/m² (8 to 34 lb)
Optical Resolution 600 dpi
Daily Duty Cycle 3000 sheets
Separation Pad Lifetime 30000 Scans
Flatbed
Scan Speed approx. 5 sec per page (Color, 300 dpi, A4)
Scan Size Auto
A4 (W210mm x L297mm / W8.3” x L11.7”)
A5 (W149mm x L210mm / W5.9” x L8.3”)
B5 (W176mm x L250mm / W6.9”xL9.8”)
Letter (W216mm x L279mm / W8.5” x L11”)
Optical Resolution 100 dpi - 600 dpi; Maximum 1200 dpi for TWAIN & iDocScan Program
Power Saving Auto power off after 15min
Compatibility TWAIN Compliant (for Windows XP / Vista / 7 / 8 / 8.1)
WIA Compliant (for Windows 7 / 8 / 8.1 only)
Dimension L430 mm x W334 mm x D100 mm (L16.9” x W13.15” x D3.94”)
Weight 4.5 kgs (9.92lbs)
Power Supply 12V/2A (Input : 100V ~ 240V, 50/60Hz)
Operation Temperature 10 °C - 35 °C (59 °F - 95 °F)
