Risograph Riso Machine Duplicator
RICOH DX2430
Fast and cost-efficient performance
High-speed printing does not have to be expensive. The Priport™ DX 2430 offers excellent value for your money. Printing an impressive 90 pages per minute, this system is both reliable and user-friendly. Adding spot colours or editing documents for a professional look is easy. This duplicator turns into an extra fast printer when upgraded with a PC controller.
High-speed printing does not have to be expensive. The Priport™ DX 2430 offers excellent value for your money. Printing an impressive 90 pages per minute, this system is both reliable and user-friendly. Adding spot colours or editing documents for a professional look is easy. This duplicator turns into an extra fast printer when upgraded with a PC controller.
- High performance
- Smart paper feed
- Easy colour drum change
- Several editing functions
- Optional PC controller
Swift service
- Attain excellent productivity levels at 90 prints per minute.
- Job fl ow from master-making to printing takes only one minute.
- Turn your duplicator into a high-speed printer with the optional PC controller.
Easy & high-quality colour
Spot colour printing becomes uncomplicated and inexpensive with the DX 2430. The colour drum is easy to change. Ten standard colour inks and unlimited custom tints are available. The device offers a fi ne 300 dpi print quality. You obtain the best images printing directly from your PC with the optional PC controller.
Spot colour printing becomes uncomplicated and inexpensive with the DX 2430. The colour drum is easy to change. Ten standard colour inks and unlimited custom tints are available. The device offers a fi ne 300 dpi print quality. You obtain the best images printing directly from your PC with the optional PC controller.
Durable & reliable
- New ink pump: reduced maintenance costs and increased reliability.

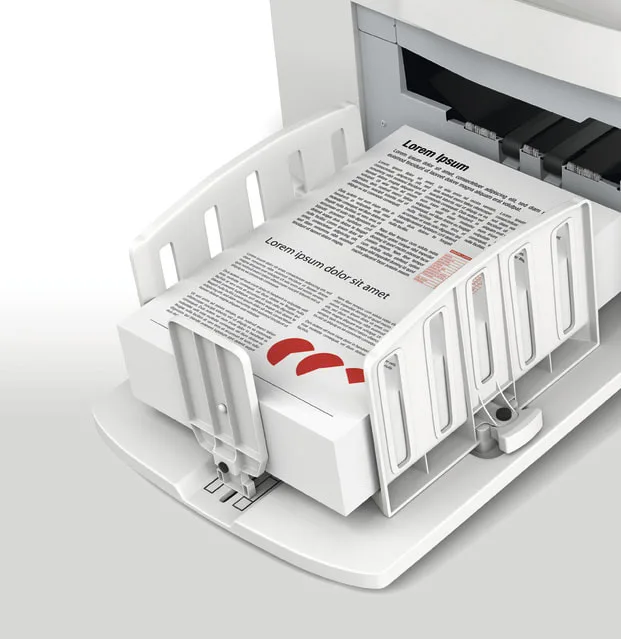

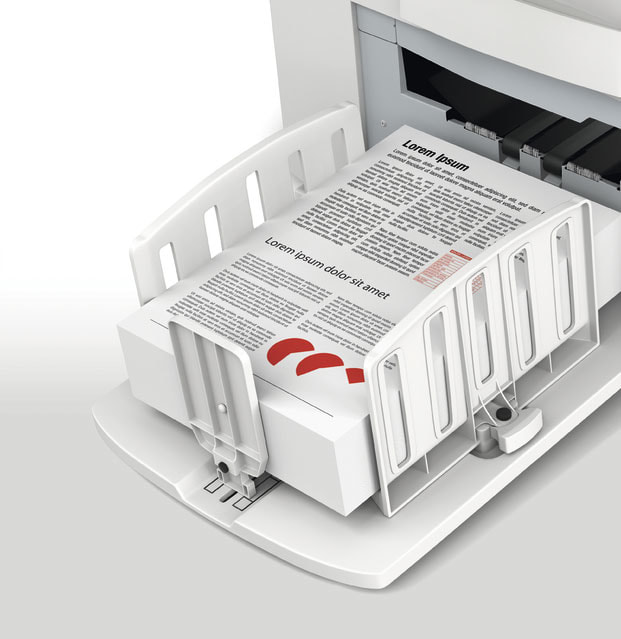

- Reliable paper feed: separation mechanism, adjustable feed pressure.
Work with thin paper
Do you use light paper types? With the DX 2430 your productivity is never compromised. This system automatically detects a misfeed and instructs the feed system to retry. The DX 2430 handles paper as light as 35 g/m² without any problems.
Do you use light paper types? With the DX 2430 your productivity is never compromised. This system automatically detects a misfeed and instructs the feed system to retry. The DX 2430 handles paper as light as 35 g/m² without any problems.
Think green
Lower your energy bills and reduce your carbon footprint at the same time. A duplicator’s printing process requires no heat. For that reason, the DX 2430 uses signifi cantly less electricity than conventional printers. Digital duplication goes easy on the environment – and on your pocket. Lack of emissions ensures a healthy and sustainable work environment.
Lower your energy bills and reduce your carbon footprint at the same time. A duplicator’s printing process requires no heat. For that reason, the DX 2430 uses signifi cantly less electricity than conventional printers. Digital duplication goes easy on the environment – and on your pocket. Lack of emissions ensures a healthy and sustainable work environment.
Edit directly
- Enlarge, reduce or combine originals without creating a second-generation original on PC.
- Get fine print results with mixed documents by using Photo/letter mode.
Watch Video Now!
PRODUCT SPECIFICATION
- Specification
- In The Box
|
Type |
Digital, desktop |
|
Printing process |
Fully-automatic one-drum stencil system |
|
Originals |
Sheet (one original sheet only) |
|
Original size - Minimum |
90 x 140 mm |
|
Original size - Maximum |
275 x 395 mm |
|
Print paper size - Minimum |
90 x 140 mm |
|
Print paper size - Maximum |
275 x 395 mm |
|
Print paper weight |
35.0 - 127.9 g/m² |
|
Print area - DX 2430 |
Maximum 250 x 355 mm |
|
Print speed |
60 - 90 sheets per minute (2 steps) |
|
First print speed |
Less than 45 seconds |
|
Image modes |
Letter mode, Photo mode, Photo/Letter mode |
|
Image position - Vertical |
± 10 mm |
|
Image position - Horizontal |
± 10 mm |
|
Reproduction ratios - Pre-set enlargement |
115,122,141% |
|
Reproduction ratios - Pre-set reduction |
71,82, 87, 93% |
|
Zoom |
No |
|
Colour printing |
By replacing colour drum |
|
Paper feed/delivery table capacity |
500 sheets (80 g/m²) |
|
Power source - 220 - 240 V, 50 - 60 Hz |
275, 395 |
|
Power consumption - Maximum |
Master making: less than 175 W |
|
Power consumption - Printing |
Less than 175 W (at 90 sheets per minute) |
|
Power consumption - Standby |
35 W |
- Drum
- User Manual
- Power Cable
- Quick Install Guide
- Warranty Registration Card
